Product introduction：The welded wire mesh is welded with high-quality low-carbon steel wire, and then subjected to surface passivation and plasticization treatment such as cold plating (electroplating), hot-plating, PVC coating and so on. It has the characteristics of flat surface, uniform mesh, firm solder joints, good local machining performance, stability and good corrosion resistance.
Uses：Widely used in industry, agriculture, aquaculture, construction, transportation, mining and other aspects. Such as building insulation nets, machine guards, various fences, passage guardrails, poultry cages, egg baskets and home office food baskets, paper baskets and decorations.
Performance parameter:
| Material: | galvanized wire, stainless steel wire, coated wire |
| Standard roll length: | 30m |
| Standard roll width: | 0.5m to 1.8m |
| Packing: | moisture-proof paper roll. Carton or tray. |
Classification ：Electroplated zinc welded wire mesh, hot-dip galvanized welded wire mesh, PVC coated welded wire mesh, stainless steel welded wire mesh. Among them, PVC welded wire mesh can be selected in color: dark green, grass blue, black, red, yellow and so on.
Process：This product is made of high-quality low-carbon iron wire, which is processed by spot welding with automatic precision and accurate mechanical equipment.
Anti-corrosion form：Cold plating (electroplating), hot plating.
Features：smooth and tidy mesh surface, firm and uniform structure, good overall performance; strong acid, alkali and corrosion resistance; strong welding, beautiful appearance, wide application, and economical price.
Uses：Widely used in industrial, agricultural, aquaculture, construction, transportation, mining and other aspects. Such as machine guards, animal fences, flower fences, window guards, channel fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations.
Material：316 316L 304L 304HC 304 302 and other grades of stainless steel.
Features：stainless steel welded wire mesh has strong anti-corrosion and anti-oxidation ability, strong solder joint, strong tensile force, bright surface, corrosion resistance, etc. The product is made by precise automatic mechanical technology, the mesh surface is flat, the structure is firm, and the integrity Strong, even if the local cutting or partial pressure is not caused by the phenomenon of slack.
Uses： Stainless steel welded wire mesh can be widely used in civil construction, raising chicken, duck, goose, rabbit and zoo fence; mechanical equipment protection, highway guardrail, stadium fence, road green belt protection net; can also be used in construction industry, Roads and bridges are used for steel bars.
| Specifications (inch) | Wire diameter (mm) | Width (meters) | Specifications (inch) | Wire diameter (mm)/ TD | width (m) |
| 1/4×1/4 | 0.4-1.2 | 0.3-1.5 | 3/4×1.5 ” | 0.8-2.0 | 0.5-1.5 |
| 1/4×1/2 | 0.4-1.2 | 0.3-1.5 | 1.5 ”×1.5 ” | 0.8-2.0 | 0.5-2.1 |
| 1/4×1 ” | 0.4-1.2 | 0.3-1.5 | 1/2×1/2 | 0.4-2.0 | 0.3-2.1 |
| 3/8×3/8 | 0.4-1.2 | 0.5-1.5 | 1/2×1 ” | 0.4-2.0 | 0.3-2.1 |
| 3/8×3/4 | 0.4-1.2 | 0.5-1.5 | 1 ”×1 ” | 0.6-2.5 | 0.5-2.1 |
| 3/4×3/4 | 0.8-2.0 | 0.5-1.5 |
2 ”×2 ” -6 ”×6 ” |
0.6-2.5 | 0.5-2.1 |

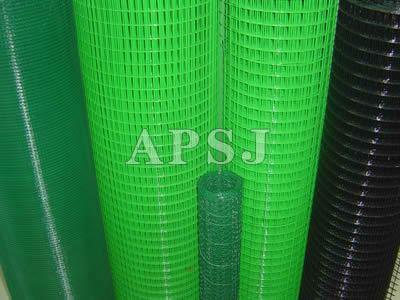

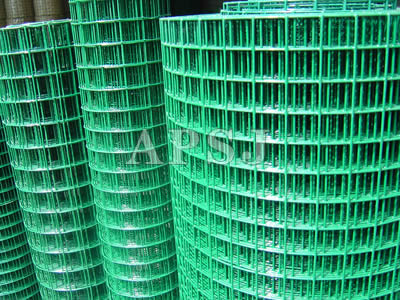

PVC welded wire mesh is also known as:plastic coated welded wire mesh. It is made by first electroplating and first hot-dip iron wire welding, and then PVC, PE and PP powder are dip coated by high temperature and automatic production line.
Material:Low-carbon steel wire anti-corrosion form: spray, dip.
Specifications:1. Mesh (mm): 6-50; 2. Wire diameter (mm): 12-24.
Weaving and characteristics:After steel wire welding, it has strong anti-corrosion and anti-oxidation ability, bright color, beautiful appearance, anti-corrosion and anti-rust, no fading, anti-ultraviolet.
Uses:Used in fences, decoration, machinery protection, etc. in various industries such as industry, agriculture, construction, transportation. For example, supermarket shelves, indoor and outdoor decoration, poultry farming, flower and wood fences, outdoor use for highway, villa, community wall isolation.
Color:dark green, grass blue, black, red, yellow and other colors.
| (PVC layer welded wire mesh) 30 meters, width 0.5 meters - 1.2 meters | ||
| Mesh | Wire diameter (BWG) | |
| Inch | mm | |
| 1/2" x 1/2" | 12.7 x 12.7 | 16、17、18、19、20、21 |
| 3/4" x 3/4" | 19 x 19 | 16、17、18、19、20、21 |
| 1" x 1" | 25.4 x 25.4 | 15、16、17、18、19、20 |
welded wire mesh PVC welded wire mesh
