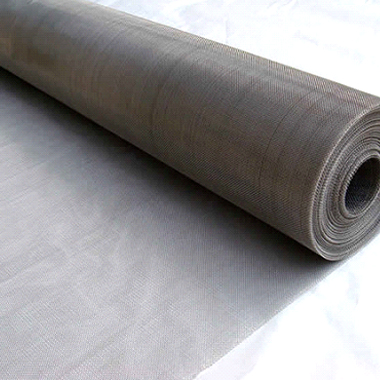

Monel Wire Mesh

Monel Wire Mesh Quick Details:

Type: Monel
Surface Treatment: Coated
Status: Soft State
Wire Diameter: 0.025-1.5 mm
Usage: Construction Wire Mesh, Protecting Mesh, Decorative Mesh, Screen, Window Curtain,
Wide: 1.1m
Thickness: Metal Fiber
Mesh: 1-635 mesh
Specification: 1m x 30m
Packing: as your required

Properties Detail

We has advanced loom for weaving in monel wire mesh.We can supply other special material wire mesh products,such as:

nickel wire mesh(Ni-Cr),monel wire mesh,titanium wire mesh and so on.Weave Pattern:plain weave, twill weave, dutch weave.

This 400 grade monel is highly resistant to the corrosive action of acids, alkalines and salt water. It has the same strength of mild steel.Monel Woven Wire Mesh is often used in marine applications such as piping systems and strainer baskets as well as in chemical processing equipment and heat exchangers. Please see below a typical chemical analysis of Monel Wire Mesh.

Packing: waterproof paper with plastic cloth,then put into wooden box.

Monel wire Mesh: 8 mesh to 200 mesh.

Monel Wire Mesh Specifications:

Specification List of Monel Wire Mesh
Mesh/Inch	Wire Dia mm d	Mesh Opening mm w	Opening Area A %	Weight (kg/m2)	Mesh /Inch	Wire Dia mm d	Mesh Opening mm w	Opening Area A %	Weight (kg/m2)
8	0.710	2.465	60.2%	2.01	30	0.279	0.567	44.8%	1.167
10	0.635	1.905	56.3%	2.02	35	0.330	0.396	29.7%	1.905
12	0.584	1.532	51.8%	2.04	40	0.254	0.381	36%	1.290
14	0.417	1.397	59.0%	1.217	60	0.160	0.263	39%	0.768
16	0.376	1.212	58.0%	1.131	80	0.120	0.198	39%	0.576
18	0.406	1.005	50.7%	1.483	100	0.100	0.154	37%	0.500
20	0.406	0.846	46.2%	1.648	120	0.090	0.122	33%	0.486
24	0.274	0.784	55.0%	0.901	150	0.066	0.103	37.2%	0.326
28	0.234	0.673	55.0%	0.767	200	0.053	0.074	33.6%	0.281
