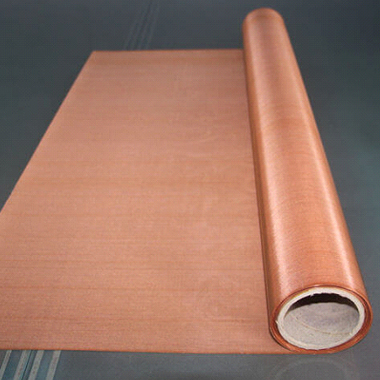

Phosphor Bronze Wire Mesh

Phosphor Bronze Wire Mesh Quick Details:

Material: Phosphor Bronze
Hole Shape: Square
Surface Treatment: Bright
Width: 3′,1m,4′,5′
Length: 30m:
Mesh Size: 6mesh-400mesh
Application: Construction Wire Mesh, Screening, Protecting Mesh, Filter
Weave Technique: Plain Weave
Weaving methods: Plain weave, twill weave or Dutch weave.

Properties Detail

Phosphor bronze wire mesh is frequently used in sieving diversified pellet, powder, porcelain clay and glass, chinaware printing, filtering liquid and gas.We are capable of supplying brass wire mesh from 1-200mesh, and phosphor bronze wire mesh from 1-500mesh. Width from 0.6m to 1.3m, length from 15m to 100m.

Phosphor Bronze Wire Mesh Specifications:

mesh	Wire Dia. (MM)			Opening(mm)
mesh	SWG	mm	inch	Opening(mm)
6mesh	22	0.711	0.028	3.522
8mesh	23	0.610	0.024	2.565
10mesh	25	0.508	0.020	2.032
14mesh	27	0.417	0.016	1.397
20mesh	30	0.315	0.0124	0.955
22mesh	30	0.315	0.0124	0.840
24mesh	30	0.315	0.0124	0.743
28mesh	31	0.295	0.0116	0.612
34mesh	34	0.234	0.0092	0.513
38mesh	35	0.213	0.0084	0.455
44mesh	37	0.173	0.0068	0.404
50mesh	37	0.173	0.0068	0.335
60mesh	37	0.173	0.0068	0.250
80mesh	40	0.122	0.0048	0.196
100mesh	42	0.012	0.004	0.152
120mesh	44	0.081	0.0032	0.131
140mesh	46	0.061	0.0024	0.120
180mesh	47	0.051	0.002	0.090
200mesh	47	0.051	0.002	0.076
