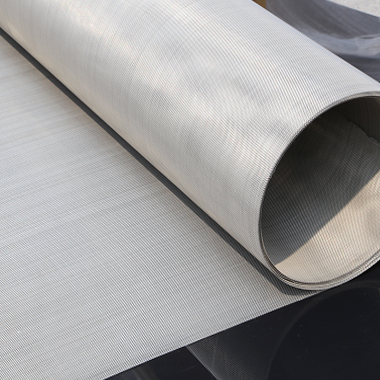

Stainless Steel Dutch Woven Mesh

Stainless Steel Dutch Woven Mesh Quick Details:

Usage:Filter,sieve,chemical,industry, paper-making , etc
Material: SS 201,202,304,304L, 316,316L, 321, 430,ect
MOQ: 1 roll
Diameter: 0.0008″-0.08″
Open Area: 25-84.6
Weight (LB) /100 Square Foot: 2.53-41.1
Roll Width: Max 240″
Roll Length: Max 2000′
Packaging Details: inner kraft paper, outside plastic cloth, put into wooden pallet or case
Delivery Time: 5 days for stock material

Properties Detail

Stainless Steel Twill Dutch Weave Wire Mesh,Products in strict accordance with the aviation standards HB1862-93 and national standards GB / T5330-2003 standards, GB / T6003.1-1997 organization of production, there are two kinds of plain and twill. Sieve size 6.00 ~ 0.020 mm (3 ~ 635 mesh / inch).

Stainless Steel Dutch Woven Mesh Specifications:

Meshes Per Linear Inch	Diameter of Wire		Width of Opening		Open Area, %
Meshes Per Linear Inch	Inches	mm	Inches	mm	Open Area, %
10 x 10	0.047	1.2	0.053	1.34	28.1
14 x 14	0.032	0.8	0.039	1.52	29.8
18 x 18	0.020	0.5	0.036	0.91	41.1
20 x 20	0.016	0.40	0.034	0.86	46.2
28 x 28	0.010	0.25	0.026	0.66	51.8
35 x 35	0.010	0.25	0.019	0.48	42.4
50 x 50	0.009	0.23	0.011	0.28	30.3
70 x 70	0.0065	0.17	0.008	0.20	29.8
80 x 80	0.0055	0.14	0.007	0.17	31.4
100 x 100	0.0045	0.11	0.006	0.15	30.3
120 x 120	0.0037	0.09	0.005	0.12	30.7
165 x 165	0.0019	0.048	0.0041	0.10	44.0
200 x 200	0.0016	0.040	0.0035	0.089	46.0
230 x 230	0.0014	0.035	0.0028	0.071	46.0
270 x 270	0.0014	0.040	0.0022	0.055	38.0
325 x 325	0.0011	0.028	0.0020	0.050	42.0
500 x 500	0.0010	0.025	0.0011	0.028	25.0
635 x 635	0.0009	0.022	0.0006	0.015	14.5
