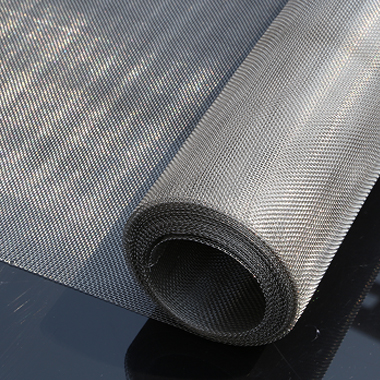

Stainless Steel Plain Woven Mesh

Stainless Steel Plain Woven Mesh Quick Details:

Usage:Filters ,sieve,chemical industry, mine industry, etc
Material: SS 201,202,304,304L, 316,316L, 321, 430,ect
MOQ: 1 roll
Diameter: 0.0008″-0.08″
Open Area: 25-84.6
Weight (LB) /100 Square Foot:2.53-41.1
Roll Width: Max 240″
Roll Length: Max 2000′
Packaging Details: inner kraft paper, outside plastic cloth, put into wooden pallet or case
Delivery Time: 5 days for stock material

Properties Detail

Here we present Stainless Steel Plain Woven Mesh specially. Stainless Steel Plain Woven Mesh own many advantages, Acid, alkali resistance, good corrosion resistance;High strength, tensile strength, toughness and wear resistance, durable;High finish, no surface treatment, easy maintenance simple.

Stainless Steel Plain Woven Mesh Specifications:

Meshes Per Linear Inch	Diameter of Wire		Width of Opening		Open Area, %
Meshes Per Linear Inch	Inches	mm	Inches	mm	Open Area, %
10 x 10	0.047	1.2	0.053	1.34	28.1
14 x 14	0.032	0.8	0.039	1.52	29.8
16 x 16	0.028	0.7	0.035	0.89	30.5
18 x 18	0.018	0.45	0.038	0.96	48.3
20 x 20	0.016	0.40	0.034	0.86	46.2
24 x 24	0.014	0.35	0.028	0.71	44.2
35 x 35	0.012	0.30	0.017'	0.43	33.8
40 x 40	0.0095	0.24	0.016	0.40	38.4
50 x 50	0.009	0.23	0.011	0.28	30.3
60 x 60	0.0075	0.19	0.009	0.22	30.5
70 x 70	0.0065	0.17	0.008	0.20	29.8
80 x 80	0.0070	0.18	0.006	0.15	19.4
90 x 90	0.0055	0.14	0.006	0.15	25.4
100 x 100	0.0045	0.11	0.006	0.15	30.3
120 x 120	0.0040	0.10	0.0043	0.11	26.6
165 x 165	0.0019	0.048	0.0041	0.10	44.0
180 x 180	0.0020	0.050	0.0035	0.09	41.1
220 x 220	0.0019	0.048	0.0026	0.066	33.0
250 x 250	0.0016	0.040	0.0024	0.061	36.0
400 x 400	0.0010	0.025	0.0015	0.038	36.0
500 x 500	0.0010	0.025	0.0011	0.028	25.0
635 x 635	0.0009	0.022	0.0006	0.015	14.5
