Aluminum-Coated Before Weaving Steel Chain Link Fabric Fence

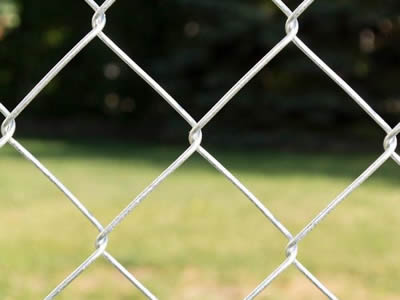

Aluminized chain-link fabric.

Aluminum-coated chain-link fence fabric is also called aluminized steel chain-link fence fabric with excellent rust and corrosion resistance. Aluminized before-weaving chain link fence fabric is woven using proven industry procedures to ensure a smooth consistent surface. It is no blisters, flaking and other defects. Our aluminized chain-link mesh fabric is conform to all requirements of ASTM A491.

Aluminized chain-link fence fabric specification:

• Materials: cold-drawn steel wire in aluminum coated, wire diameter and the aluminum coating weight as specified in table 1.
• Wire breaking strength: see table 1.
• Permissible variation of wire diameter: ±0.13 mm.
• Diamond count: see table 2.
• Mesh size: see table 3, table 4, and picture ACL-2 below.
• Permissible variation of mesh size:
  • ±1.6 mm for mesh sizes 25.4 mm and under.
  • ±3.2 mm for mesh sizes over 25.4 mm.
• Height of fabric: table 3. Custom order fabric height upto 6.56 m.
• Selvage:
  • Knuckled selvage for less than 50 mm mesh opening fabric.
  • Both knuckled selvage for less than 1800 mm high fabric
  • knuckled at one selvage and twisted (barbed) at the other for 1800 mm high fabric and over.
• Fabric roll length: 50 ft (15.24 m), permissible variation ±1%.
• Packaging: chain link fabric is tightly rolled and firmly tied. Each roll carry a tag showing the type of coating, the specified wire size, mesh size, the specified length and height of fabric in the roll, and the name and mark of the manufacturer.

Table 4: Mesh dimensions for 3/8 in., 1/2 in., and 5/8 in. chain link fence fabric

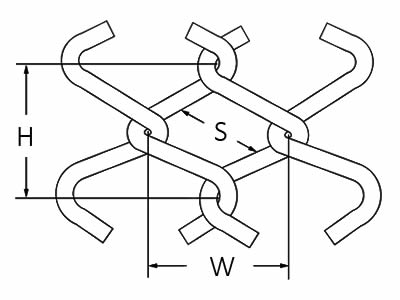

ACL-2: Chain link mesh size,  height, and width.	Mesh size, S	Height, H	Width, W
	3/8 in. (9 mm) mesh	3/4 in. (19 mm)	3/4 in. (19 mm)
	1/2 in. (13 mm) mesh	15/16 in. (24 mm)	15/16 in. (24 mm)
	5/8 in. (16 mm) mesh	11/8 in. (29 mm)	11/8 in. (29 mm)

Ordering Information

Orders for chain-link fence fabric purchased shall include the following information:

1. Quantity,
2. Size of mesh (table 3),
3. Size of wire (table 3),
4. Height of fabric (table 3),
5. Diamond count, if specified (table 2),
6. Type of selvage (knuckled or twisted),
7. Certification if required and standards.

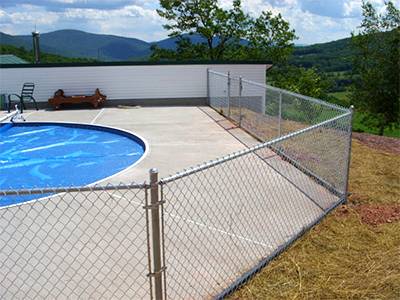

ACL-3: Aluminized chain link pool fence outdoor.

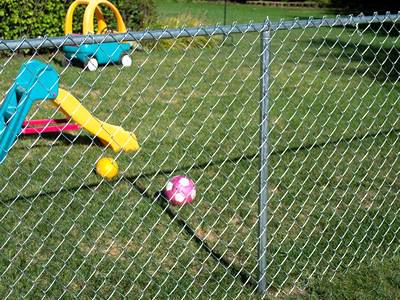

ACL-4: Aluminized chain link fence for outdoor play area.

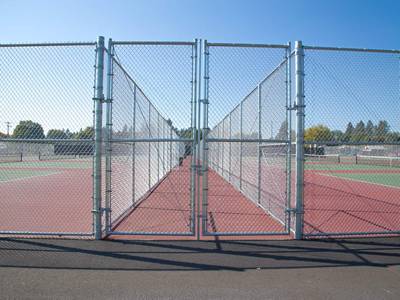

ACL-5: Aluminized chain link tennis court fence.

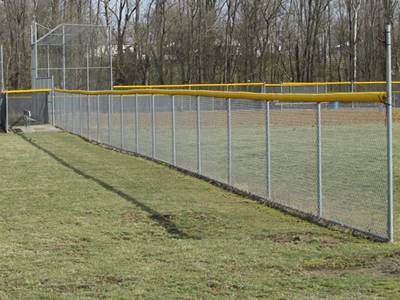

ACL-6: Chain link baseball outfields fence and backstop fence.

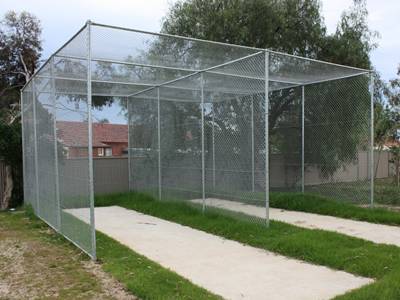

ACL-7: Chain link cricket net fencing enclosures.

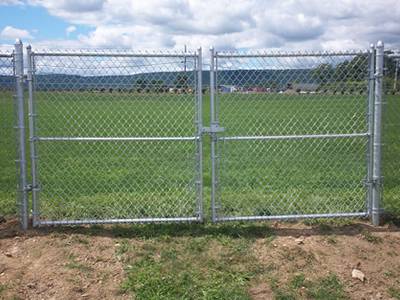

ACL-8: Chain link fence gate.

Application: Aluminized chain link mesh fabric with perfect anti-corrosion and anti-rust characteristic is widely used for sports fencing and commercial, family residential protection fencing system, such as, swimming pools, hot tubs, and spas fence, outdoor play area fence, tennis court fence, baseball and softball field fence, cricket fencing enclosures, and even used as chain link security fence. Their details as the following.

1. Aluminum-coated chain link fences for residential outdoor swimming pools, hot tubs, and spas
   • Chain link wire gauge: 9–11 gauge.
   • Chain-link mesh opening size: 32 mm. Horizontally distance between corners no more than 44 mm.
   • Chain-link fabric selvage: knuckle and knuckle.
   • Chain link mesh fabric height: 1219 mm.
   • The 13/4 in. (44 mm) maximum horizontal opening in the chain link mesh is based on the foot width for young children and is intended to reduce the potential for gaining a foothold.
2. Aluminum-coated chain link fences/barriers for public, commercial, and multi-family residential use outdoor play area
   • Chain link wire gauge: 9–11 gauge.
   • Chain-link mesh opening size: 32 mm. Horizontally distance between corners no more than 44 mm.
   • Chain-link fabric selvage: knuckle and knuckle.
   • Chain link mesh fabric height: more than 1220 mm.
   • The 13/4 in. (44 mm) maximum horizontal opening in the chain link mesh is based on the foot width for young children and is intended to reduce the potential for gaining a foothold
3. Aluminum-coated chain-link mesh fabric for tennis court fence
   • Chain link wire gauge: 9 gauge or 11 gauge.
   • Chain-link mesh size: 44 mm.
   • Height of fabric: 3050 or 3660 mm
   • Chain-link fabric selvage: knuckle top and knuckle bottom.
   • 3050 or 3660 mm high chain-link fencing as complete enclosures around single or multiple tennis courts, or as backstops at either end of tennis courts.
4. Aluminum-coated chain link mesh fences for baseball and softball fields
   • Chain link wire gauge: 9 gauge.
   • Chain-link mesh size: 50 mm.
   • Chain-link fabric selvage: knuckle and knuckle.
   • 2.44 m high chain link fabric for baseball and softball outfield fence, player bench protective fence, spectator protective fence, backstop fence, foul line fence, and field gate.
5. Aluminum-coated chain link fabric fence for cricket net fencing enclosures
   • Wire diameter: 10–12 gauge.
   • Mesh size: 50 mm and 60 mm.
   • Fence height: 4000 to 9000 mm.
   • Length: 10 to 20 meter.
6. Aluminized chain-link fence for design and construction of chain link security fencing system, increase the difficulty to penetrate; thereby, increasing the intrusion delay time.

Chain link fence Chain link fence mesh
