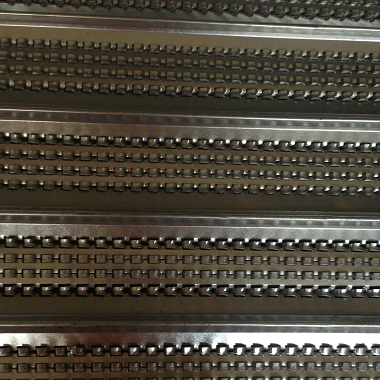

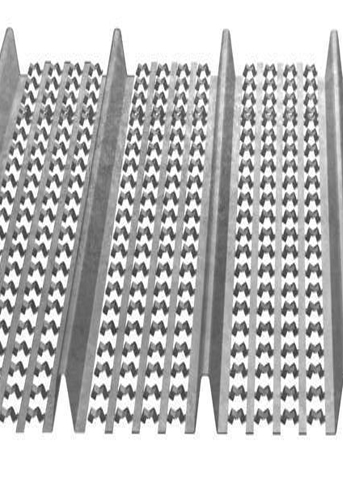

Hyirb Mesh

Hyirb Mesh Quick Details:

Usage: Aquaculture, Civil Building, Railway Construction, Road Construction
Material: Galvanized Sheet Plate
MOQ: 50 Pcs.
Colour: Sliver.
Type: Wall form work
Width: 450 mm
Length: 2200 mm
Packing：Packing By Pallet.
Delivery: 10 days, according to specification and stock

Hyirb Mesh Properties Detail

Widely used as a plaster backing on ceilings, walls and stud partitions. Rib mesh is also ideal for refurbishing damaged or aged masonry walls Application:

1).Construction form work mesh has very good engineering quality and construction security

2).Construction form work mesh as the concrete permanent assembly free sheet is much convenient for engineering design and processing;

3).Construction form work mesh is widely used in tunnels,bridges and valve system and so on

Hyirb Mesh Specifications:

Model	Thickness (mm)	Weight (kg)	Width (mm)	Length (mm)	Rib Height (mm)	Rib Distance (mm)
021	0.21	1.70	450	2200	14-20	90
023	0.23	1.90	450	2200	14-20	90
030	0.30	2.48	450	2200	14-20	90
035	0.35	2.90	450	2200	14-20	90
040	0.40	3.30	450	2200	14-20	90
045	0.45	3.70	450	2200	14-20	90
050	0.50	4.10	450	2200	14-20	90
